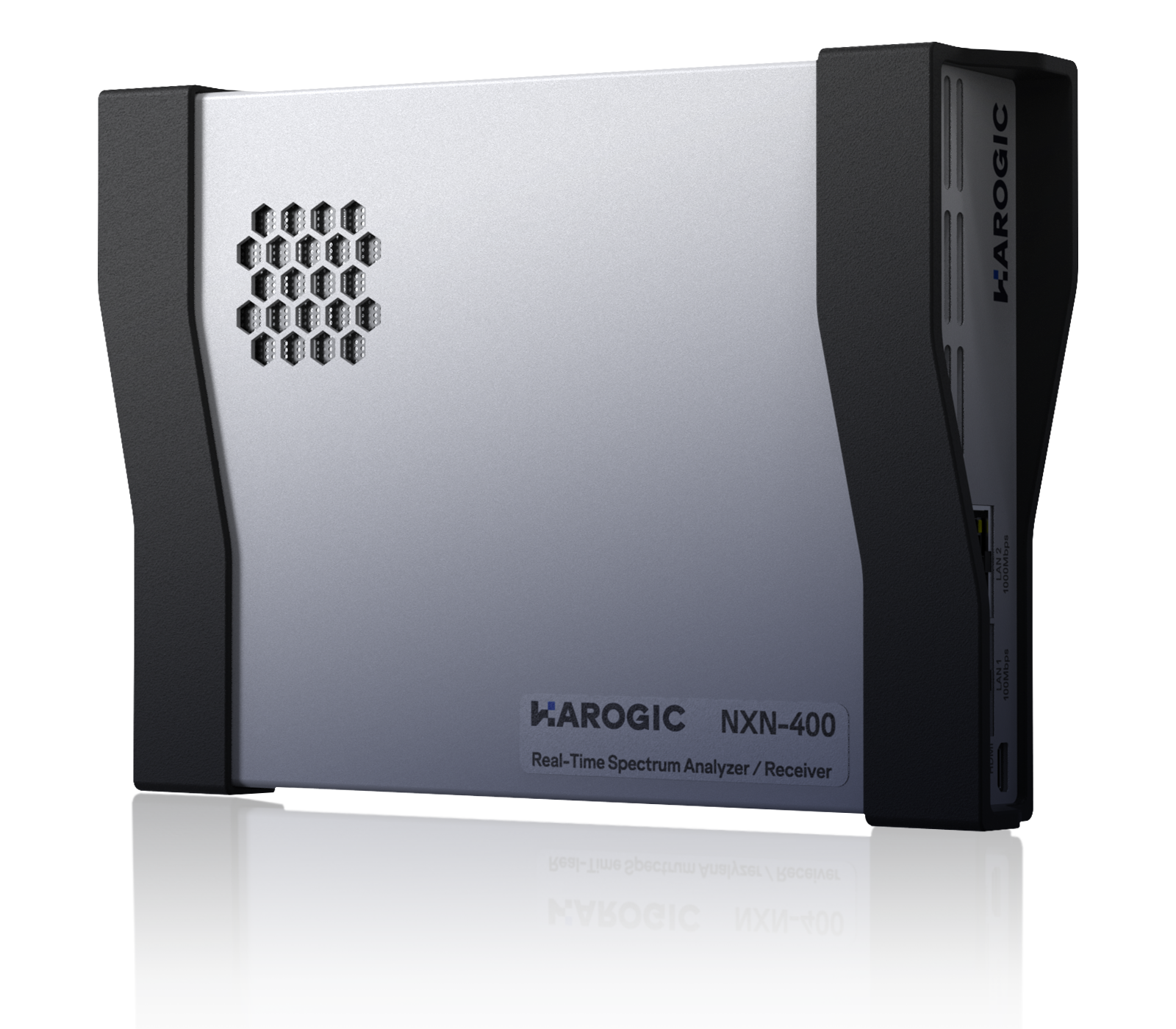

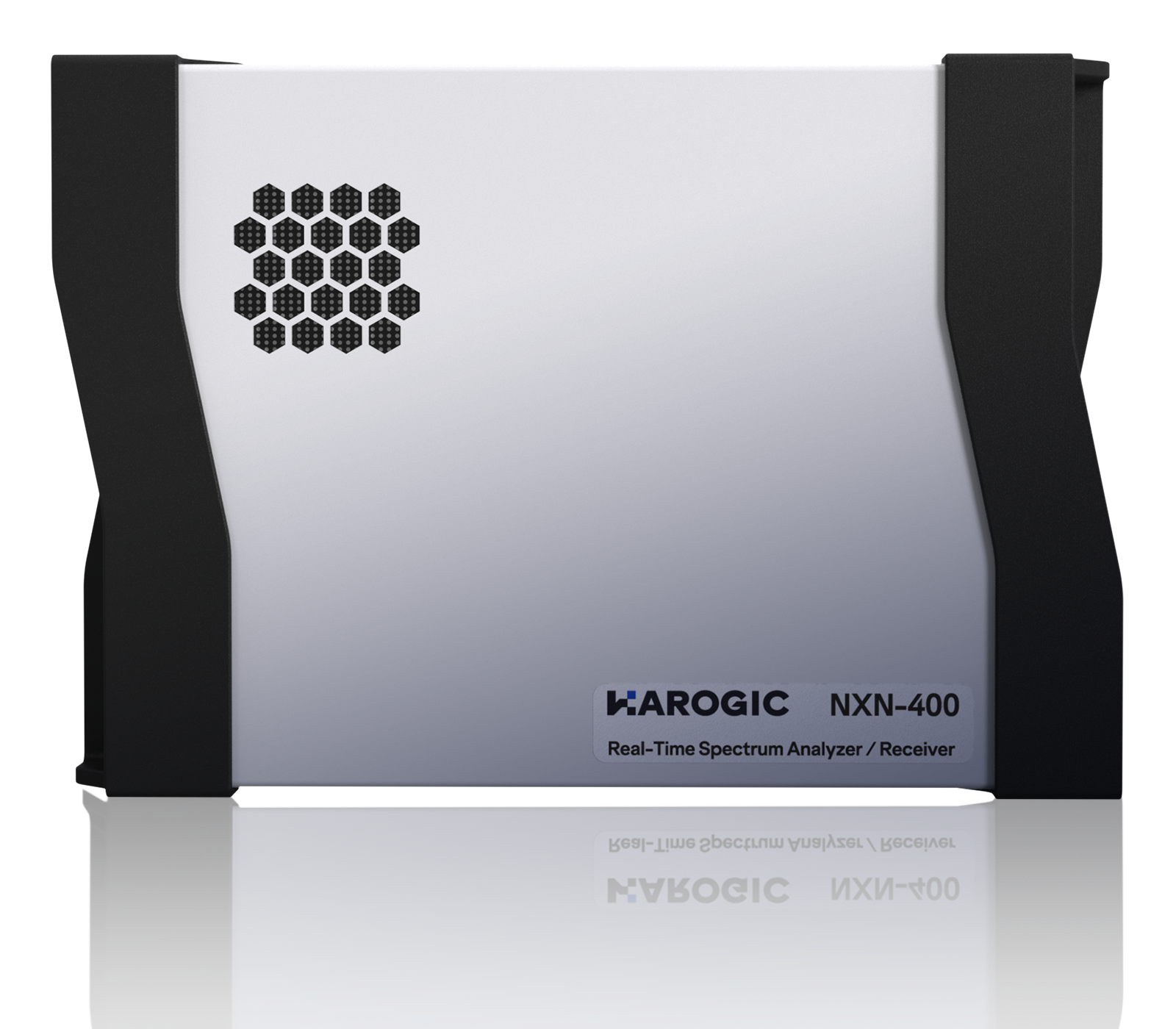

NXN-400 Series
KEY FACTS
Frequency Range: 9 kHz To 40 GHz
1 GHz DANL: -161 dBm/Hz
1 GHz Phase Noise: -107 dBc/Hz@10 kHz
Analysis Bandwidth: Up to 100 MHz

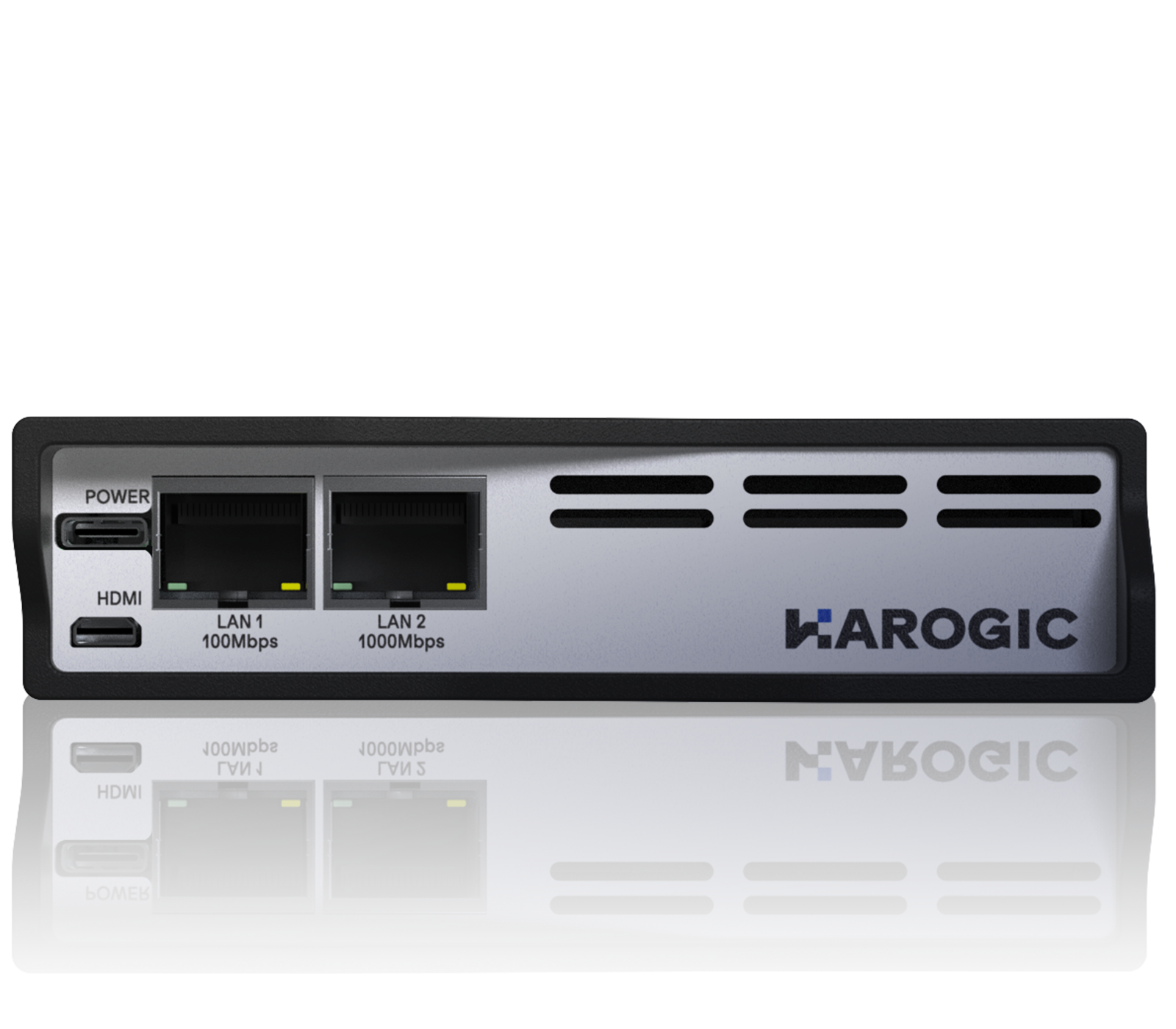

1000M/100M Ethernet Interface
Highly Compatible API Interface
Linux and Windows Operating Systems Are Supported
GET A QUOTE
Benefits
Highlight.
NXN-400 series is a powerhouse for network node spectrum analysis, covering 9 kHz to 40 GHz. Its 100 MHz analysis bandwidth and rapid 300 GHz/s sweep speed ensure swift, reliable signal detection. Enhanced by robust image suppression and IF rejection, the NXN-400 excels in demanding environments. Compact and efficient, it supports Ethernet and GNSS, making it a versatile choice for remote RF spectrum analysis.
Products
Videos.
HAROGIC Quick Start Guide for NX Series
HAROGIC SAStudio4 Phase Noise Measurement Guide
How to Use API With HAROGIC Model
Available
Models.
NXN-400 SERIES
Model
Frequency
Phase Noise 1 GHz, 10kHz offset
DANL 1 GHz, Amp On
Analysis Bandwidth
Sweep Speed
Starting at
NXN-400
9 kHz-40 GHz
-107 dBc/Hz
-161 dBm/Hz
100 MHz
300 GHz/s
GET A QUOTE
OPTIONS
Code
Option
Description
01
Built-In OCXO Reference Clock
Built-In Hardware
05
Internal High Precision GNSS
Built-In Hardware
06
Built-In GNSS Disciplined OCXO Reference Clock
Built-In Hardware
40
T1 Temperature Class
Built-In Hardware
71
Basic Digital Modulation Analysis
Software
